USD-8FAT

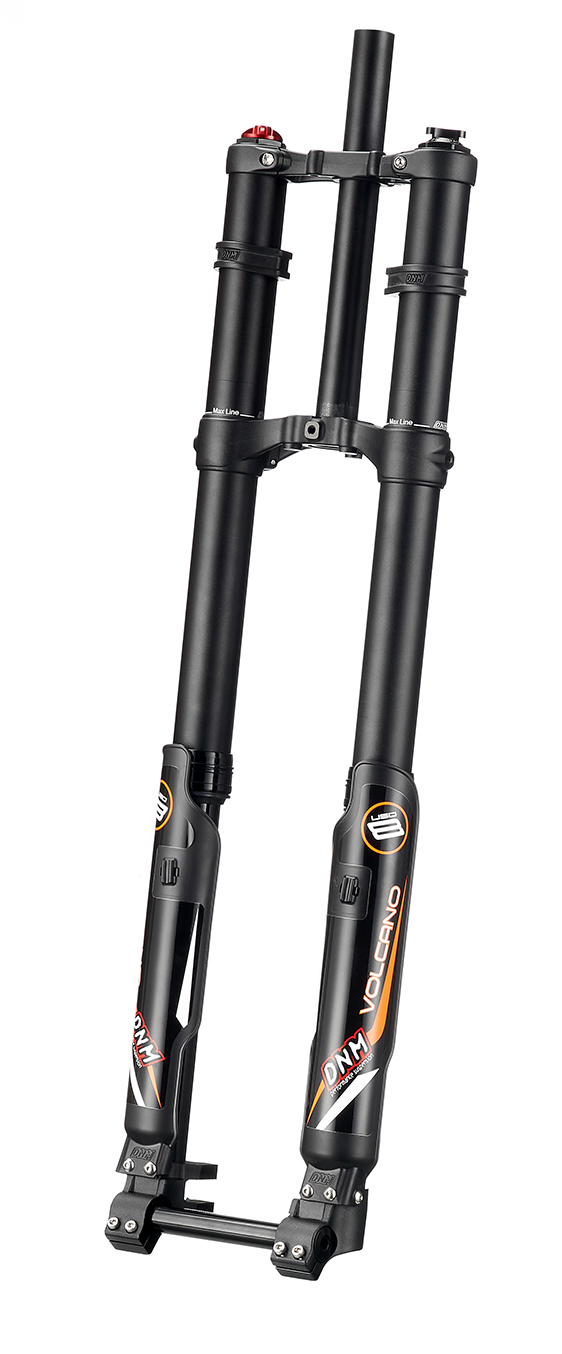

The Suspension USD-8FAT Up Side Down Double Shoulder is a professional-grade inverted (upside-down) dual crown suspension fork specifically engineered for fat bikes, downhill (DH) riding, snow terrain, forest trails, and extreme off-road applications. Designed with a lightweight yet robust aluminum structure, the USD-8FAT combines 35mm hard-anodized stanchions, AL-7075 components, through-axle technology, and adjustable damping systems to deliver exceptional rigidity, responsiveness, and rider confidence on the most demanding terrain.
The upside-down suspension design has become increasingly popular in aggressive off-road cycling because it reduces unsprung mass and provides enhanced small-bump sensitivity and tracking performance compared with conventional forks.
Modern riders demand suspension systems capable of handling:
Downhill mountain biking
Fat bike adventures
Snow riding
Forest trails
Beach cruising
Heavy-duty off-road cycling
Custom e-bike applications
The USD-8FAT has been developed to satisfy these demanding conditions by integrating forged aluminum construction, coil spring technology, adjustable rebound settings, and high-strength through-axle architecture. (tw.accord.com.tw)
| Item | Specification |
|---|---|
| Model | USD-8FAT |
| Product Type | Up Side Down Double Shoulder Suspension Fork |
| Weight | 3.9 KG (8.6 lb) |
| Wheel Size | 24 / 26 / 27.5 inch |
| Travel | 112 mm (4.41") for 24" / 203 mm (8") |
| Steerer Tube | 28.6 mm (1.13") Straight |
| Tapered Option | 1-1/8" to 1.5" |
| Steerer Material | AL-7075 |
| Crown Material | Forged AL-6061 |
| Dropout Material | Forged AL-6061 |
| Outer Tube | 42 mm AL-6061 |
| Inner Tube | 35 mm AL-7075 Hard Anodized |
| Axle System | 20 mm x 110 mm Thru-Axle |
| Axle Material | AL-7075 |
| Fork Design | Inverted (Upside Down) |
| Internal Structure | Coil Spring |
| Adjustments | Preload / Rebound / Air Pressure Adjustable |
| Brake Compatibility | Disc Only (Post Mount) |
| Riding Style | DH (Downhill) |
| Color | Black |
Unlike traditional right-side-up suspension systems, the upside-down fork places the larger diameter tubes at the crown and the lighter components near the wheel.
✔ Higher structural rigidity
✔ Reduced unsprung weight
✔ Better terrain tracking
✔ More responsive suspension movement
✔ Enhanced small-bump compliance
✔ Improved front-end sensitivity
These characteristics make inverted forks particularly suitable for gravity riding and rough terrain applications.
The double crown structure significantly increases front-end stiffness.
| Performance Area | Improvement |
|---|---|
| Steering Precision | Excellent |
| High-Speed Stability | Excellent |
| Landing Control | Superior |
| Cornering Performance | Superior |
| Torsional Rigidity | Outstanding |
The result is a fork capable of handling aggressive downhill riding while maintaining precise steering feedback.
The USD-8FAT utilizes premium AL-7075 aluminum in several key components.
High tensile strength
Lightweight construction
Corrosion resistance
Fatigue resistance
Long service life
AL-7075 is commonly used in aerospace and high-performance cycling components because of its exceptional strength-to-weight ratio.
The large-diameter stanchions provide:
Increased rigidity
Improved impact resistance
Reduced flex under heavy loads
Longer seal lifespan
Better suspension consistency
Hard anodization also improves wear resistance and surface hardness.
The USD-8FAT employs a proven coil spring structure.
| Feature | Benefit |
|---|---|
| Linear Spring Curve | Predictable suspension response |
| Excellent Traction | Better tire contact |
| Reliability | Minimal maintenance |
| Durability | Long-term performance |
| Comfort | Superior bump absorption |
Coil suspension remains highly favored among downhill riders due to its smooth and consistent performance characteristics.
The USD-8FAT provides multiple tuning options.
Allows riders to set:
Rider sag
Initial fork firmness
Weight compensation
Controls:
Return speed
Wheel traction
Stability over repeated impacts
Enables customization for:
Rider weight
Riding conditions
Terrain characteristics
These adjustments allow riders to achieve a highly personalized suspension setup.
The USD-8FAT is designed exclusively for modern disc brake systems.
✔ More powerful braking performance
✔ Superior heat management
✔ Better wet-weather performance
✔ Increased control on steep descents
✔ Consistent stopping power
Disc brakes are now considered essential equipment for modern downhill and fat bike applications.
| Riding Application | Suitability |
|---|---|
| Downhill Racing | ★★★★★ |
| Fat Bike Riding | ★★★★★ |
| Snow Riding | ★★★★★ |
| Forest Trails | ★★★★★ |
| Beach Riding | ★★★★★ |
| E-Bike Conversion | ★★★★☆ |
| Adventure Touring | ★★★★☆ |
| Urban Commuting | ★★★☆☆ |
The dual crown architecture minimizes flex and increases steering confidence.
The coil spring system effectively absorbs impacts and vibrations.
Forged AL-6061 and AL-7075 components offer exceptional longevity.
Preload, rebound, and air pressure adjustments accommodate various rider preferences.
The DH-oriented geometry and inverted design provide maximum control under extreme riding conditions.
An upside-down or inverted suspension fork places the larger suspension tubes near the frame and the lighter components near the wheel, improving responsiveness and reducing unsprung mass.
Yes. The USD-8FAT is specifically designed for DH (Downhill) applications and offers excellent rigidity, impact absorption, and steering precision.
The fork supports:
24-inch wheels
26-inch wheels
27.5-inch wheels
Yes.
The USD-8FAT offers:
Preload adjustment
Rebound adjustment
Air pressure adjustment
The fork is designed exclusively for disc brake systems with post mount configuration.
The fork incorporates:
Forged AL-6061 aluminum
AL-7075 aerospace aluminum
Hard anodized 35 mm stanchions
Yes. The USD-8FAT is ideal for:
Snow bikes
Fat bikes
Beach riding
Forest trails
Extreme off-road conditions
The Suspension USD-8FAT Up Side Down Double Shoulder Fork represents a premium solution for riders seeking professional-level suspension performance. Featuring an inverted dual crown design, AL-7075 construction, 35 mm hard-anodized stanchions, coil spring architecture, and multi-adjustable damping settings, the USD-8FAT delivers exceptional control, stability, and durability for fat bike adventures, downhill racing, snow riding, and extreme off-road cycling applications.
